490 Ranger Sports (side console)

Back to listings


Sea Jay 490 Ranger Sports (side console)

$0.00
* Sail Away
Send an Enquiry
adsc_8221a_40182011294_o
dsc_0333_40847904222_o
dsc_0334_40847903132_o
dsc_0335_40847901932_o
dsc_0340_40847897412_o
dsc_0343_26017522187_o (1)
dsc_0343_26017522187_o
dsc_0344_40847894032_o
dsc_0346_39080286130_o
dsc_8211_39080280170_o
dsc_8687_40182017484_o
Click to zoom / enlarge this image

Designed to handle all the “TUFF STUFF” the Ranger Sports is well suited for die-hard anglers. Available in 460, 490 & 530 in the Sports (side or centre console) version. With high tensile 5083 Plate 4mm bottom with 50mm capped keel and reverse chines the Ranger Sports has the size and strength to get the job done. With the checkerplate floor and 3 seat positions the deck can be opened up to give you the freedom to move comfortably about your boat as you reel in the big one!

Side Console

Steering

5.46 metres

Length

Aluminium

Hull Material

N/A

Hull Type

Details Specifications Features & Options
Boat Details
  • Make: Sea Jay
  • Name: 490 Ranger Sports (side console)
  • Model Number: N/A
  • Year: 2025
  • Length: 5.46 metres
  • Width: 2.35 metres
  • Dry Weight: 545 kg
  • Hull Material: Aluminium
  • Hull Type: N/A
  • Passenger Capacity: 5
  • Boat Usage: Fishing
  • Steering: Side Console
  • Warranty: N/A

SPECIFICATIONS  460  490 530
High Tensile 5083 Plate Bottom (mm) 4.0 4.0 4.0
Plate sides (mm) 3.0 3.0 3.0
Beam (m) 2.35 2.35 2.45
Depth (m) 1.26 1.28 1.35
Floor Ribs 10 11 13
Length overall (m) 5.1 5.46 5.73
Total length incl trailer & motor approx (m) 6.15 6.27 6.75
Number of persons 5 5 5
Weight approx – Sports version (kg) 510 545 578
Maximum hp 75 90 140
Maximum hp with half pod 75 115 140
Max motor weight 166 185 220
Fuel Tank Capacity 90L 115L 170L
TRANSOM
Long Shaft 20″ n/a n/a n/a
Extra Long Shaft 25″ ✓ ✓ n/a
Half Pod Extra Long Shaft 25″ Opt Opt ✓

* Note – Specifications may vary clightly & are subject to change without notice.
n/a = not available or not applicable to to that size
Opt = optional
✓ = included as standard







FEATURES 460 490 530
SAMURAI HULL ✓ ✓ ✓
Alloy rod holders 6 6 6
Alloy scupper 2 2 2
Anchor cavity ✓ ✓ ✓
Battery tray under front deck 2 2 2
Bollard – front ✓ ✓ ✓
Bollard – rear 2 2 2
Bow sprit ✓ ✓ ✓
Bung 1 1 1
Capped Keel 50mm ✓ ✓ ✓

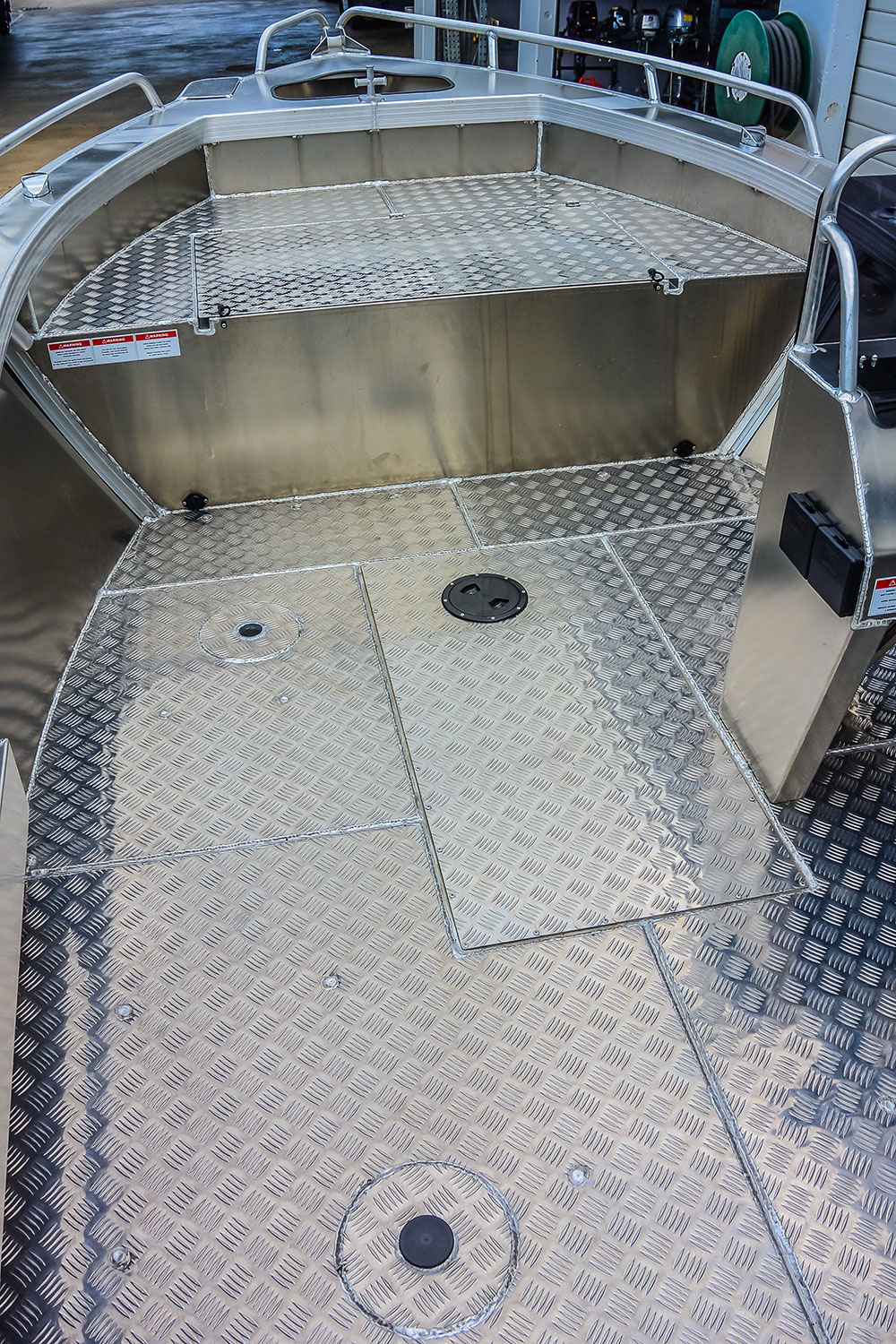

Checker plate floor – fully welded ✓ ✓ ✓
Casting platform (front) to bow with large hatch ✓ ✓ ✓
Console Side as standard ✓ ✓ ✓
Centre console Opt Opt Opt
Electric motor mount plate – extended off gunwhale ✓ ✓ ✓
Gunwhale rubber insert ✓ ✓ ✓
Inspection port / fuel filler ✓ ✓ ✓
Inspection port – nylon ✓ ✓ ✓
Keel Internal ✓ ✓ ✓
Ladder – Heavy Duty Folding Opt Opt Opt
Reverse Chines ✓ ✓ ✓
Side Pockets ✓ ✓ ✓
Spray Chines ✓ ✓ ✓
Splash Well ✓ ✓ ✓
Towing eye (double) ✓ ✓ ✓
Transducer mount bracket – Dual ✓ ✓ ✓
Under floor flotation ✓ ✓ ✓
Wide side decks to bow ✓ ✓ ✓
ELECTRICAL
Live bait tank – plumbed with pump ✓ ✓ ✓
Accessory pre-rig. Includes bilge pump, battery isolator, nav lights, anchor lights, switch panel ✓ ✓ ✓
FUEL
Under floor fuel tank with gunwale filler & sender 90L 115L 170L
Side Deck Fuel Filler ✓ ✓ ✓
RAILS
Bow rails ✓ ✓ ✓
Rear rails ✓ ✓ ✓
SEATS
Fully upholstered Deluxe Folding Seat 2 2 2
Seat sockets 3 3 3
TRANSOM
Long Shaft 20″ n/a n/a n/a
Extra Long Shaft 25″ ✓ ✓ n/a
Half Pod Extra Long Shaft 25″ Opt Opt ✓
STEERING
Hydraulic ✓ ✓ ✓
FACTORY OPTIONS 460 490 530
Painted Inside / Outside / Both opt opt opt
Vinyl Wrap opt opt opt
Pin Stripes. Deluxe 2 color opt opt opt
Sea Jay Trailer – Get extra 12 month Warranty FREE opt opt opt
Spare Wheel Kit opt opt opt
Ladder – Heavy Duty Folding opt opt opt
Minn Kota Pre-rig opt opt opt
Minn Kota motor opt opt opt
Carpet. Main floor, cast deck & bulk head (over aluminium) opt opt opt
Half Pod to suit 20″ engines opt opt n/a
Half pod to suit 25″ engines opt opt Std
Extra standard seat – 2 are provided opt opt opt
Upgrade to Deluxe Seats opt opt opt
Extra Deluxe Seat opt opt opt
Upgrade bottom from 4mm high tensile plate to 5mm high tensile plate n/a opt opt
Bait board n/a n/a opt


* Note – Options are subject to change without notice.
n/a = not available or not applicable
Std = standard
