520 Velocity Sports TD

Back to listings

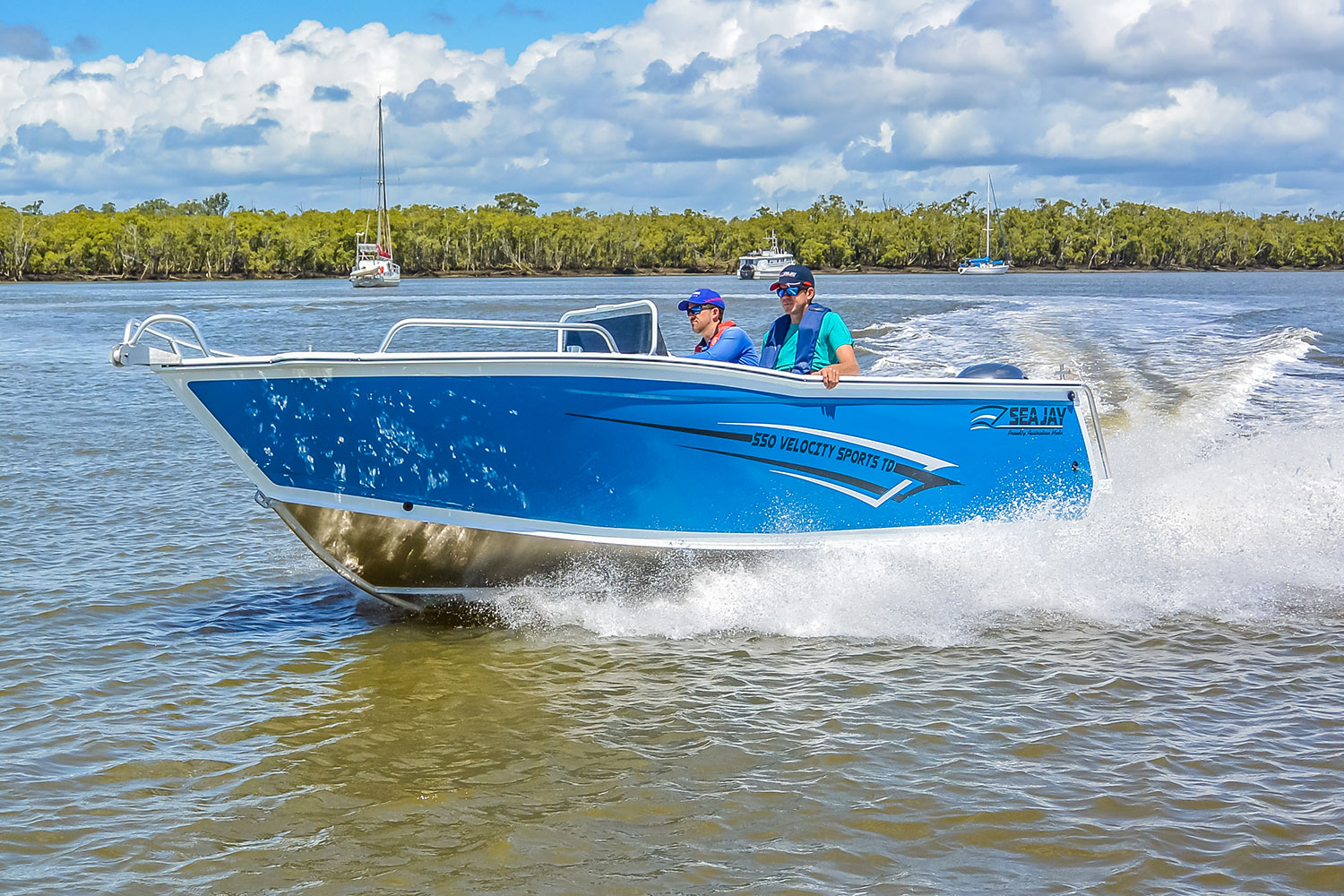

Sea Jay 520 Velocity Sports TD


$0.00
* Sail Away
Click to zoom / enlarge this image

The Velocity Sports TD (Tuff Deck) carries all the same features of our Velocity but with the Tuff Deck feature. What does Tuff Deck mean you ask? A no nonsense deck of 3mm checker plate alloy floor / deck throughout with sump box. This makes the boat easy to wash down, with no carpet to attract sand and mud this model is an ideal for crabbing and net casting. The Velocity Sports TD is only available as side console.

Boat Details
  • Make: Sea Jay
  • Name: 520 Velocity Sports TD
  • Model Number: N/A
  • Year: 2025
  • Length: 5.52 metres
  • Width: 2.4 metres
  • Dry Weight: 655 kg
  • Hull Material: Aluminium
  • Hull Type: N/A
  • Passenger Capacity: 5
  • Boat Usage: Fishing
  • Steering: N/A
  • Warranty: N/A

 Specifications  520  550 590
 Bottoms 5083 plate (mm)  4.0  4.0 4.0
 Sides (mm)  3.0  3.0 3.0
 Beam (m)  2.4  2.45 2.47
 Depth (m)  1.29  1.30 1.36
 Depth (m) inc screen  1.68  1.7 1.7
 Floor ribs  13  14 15
Number of persons  5  6 6
 Weight approx (kg)  655  670 700
 Recommended horse power  90  100 130
 Maximum horse power  115  150 150
 Maximum motor weight (kg)  195  230 230
 Overall length (m)  5.52  5.82 6.22



FEATURES  520  550 590
Anchor well ✓ ✓ ✓
Bait tank plumbed – alloy ✓ ✓ ✓
Battery & oil rack in stern ✓ ✓ ✓
Boarding ladder – heavy duty ✓ ✓ ✓
Hatches x 2 in transom ✓ ✓ ✓
Low floor under front cast ✓ ✓ ✓
Bollards 3 3 3
Bow sprit & roller ✓ ✓ ✓
Bungs 38mm x 2 2 2 2
Console side ( include screen / shelf ) ✓ ✓ ✓
Console centre towards rear ( includes screen / shelf ) ✓ ✓ ✓
Dive door ✓ ✓ ✓
Drink holders 2 2 2
Electric motor plate – extended off gunwhale ✓ ✓ ✓
Ice box storage under front cast deck ✓ ✓ ✓
Front casting platform with 4 x hatches ✓ ✓ ✓
Floatation – under floor ✓ ✓ ✓
Floor – checkplate ✓ ✓ ✓
Gunwhale rubber insert ✓ ✓ ✓
Hull – samurai / reverse chine ✓ ✓ ✓
Painted – chine up & inside ✓ ✓ ✓
Pin striping ✓ ✓ ✓
Plate sides ( 3mm plate ) ✓ ✓ ✓
Plate 5083 4mm bottoms withed capped keel & welded strakes ✓ ✓ ✓
Rod holders plastic 6 6 6
Side pockets ✓ ✓ ✓
Spray chines ✓ ✓ ✓
Steering – hydraulic ✓ ✓ ✓
Towing eye (double) ✓ ✓ ✓
Transducer bracket ✓ ✓ ✓
Wide side decks to bow ✓ ✓ ✓
 TRANSOM 520 550 590
Enclosed 25″ ✓ ✓ ✓
 FUEL TANK
Under floor / gunwale filler / gauge  150ltr  175ltr 200ltr
 RAILS
Heavy duty 32mm low bow rails ✓ ✓ ✓
Console screen grab rail ✓ ✓ ✓
Heavy duty 32mm rear transom rails ✓ ✓ ✓
 SEATS
Full upholstered folding seats & pedestal  2  2 2
Seat sockets  5  5 5
 ELECTRICAL
Accessory pre rig loom with battery box & isolation switch ✓ ✓ ✓
6 gang switch panel / bilge pump / navigation, stern & anchor light ✓ ✓ ✓



Features subject to change without notification


FACTORY OPTIONS 520 550
Sea Jay Trailer. Galvanised Steel or I Beam Alloy. Get 12 months Free Extra Warranty opt opt
Bait Board. Standard, Deluxe or Removable opt opt
Coloured paint (White or Pipeline Grey as standard) opt opt
Centre Console or Side Console opt opt
Dual Battery accessory pre-rig upgrade opt opt
Extra Deluxe Seats (comes with 2 deluxe seats as standard) opt opt
Hatch over transom cutout opt opt
Hydraulic steering std std
Minn Kota Factory fit up opt opt
Printed Vinyl Wrap opt opt
Rod Locker opt opt
Rod holder upgrade from plastic to alloy opt opt
Saltwater Deck Wash Kit opt opt
Sarca Anchor #3 with s/s swivel opt opt
Stress Free Winch opt opt
