590 Titan

Back to listings


Sea Jay 590 Titan


$0.00
* Sail Away
Click to zoom / enlarge this image

The TITAN centre cab is a great all round platform for fishing, diving or extended over night trips. Built on the popular Samurai Hull the Titan has 360 degree fishability with easy access to the bow / anchor well – perfect for reef fishing or sports fishing for pelagics.

Boat Details
  • Make: Sea Jay
  • Name: 590 Titan
  • Model Number: N/A
  • Year: 2024
  • Length: 0 metres
  • Width: 2.45 metres
  • Hull Material: Aluminium
  • Hull Type: N/A
  • Passenger Capacity: 6
  • Boat Usage: N/A
  • Steering: Centre Console
  • Warranty: 24 Months

SPECIFICATIONS  5.50  5.90 6.30
SAMURAI HULL
Bottoms 5083 High Tensile Plate (mm) 4.0 4.0 5.0
Plate sides (mm) 3.0 3.0 4.0
Beam (m) 2.45 2.45 2.48
Depth (m) 1.3 1.36 1.57
Depth – including screen & canopy top (m) TBA 3.03 3.16
Depth – canopy top folded  (m) TBA 2.51 2.64
Floor ribs 14 15 16
Length overall (m) 5.82 6.22 6.65
Number of persons (at 80kg per person) 6 6 6
Weight approx (kg) TBA 895 1077
Maximum hp 150 150 200
Maximum motor weight (kg) 240 240 285
Note-  Specification may vary & are subject to change without notice.
 FEATURES  550  590 630
Anchor well with mounting plate to suit stress free Mini winch ✓ X
Anchor well with mounting plate to suit stress free Midi winch X X
Bait Board – Deluxe Opt Opt
Bait tank plumbed – alloy
Battery & oil rack in stern
Boarding ladder – heavy duty
Bollards 3 3 3
Sarca bow sprit & roller (suits Sarca #2) X
Sarca bow sprit & roller (suits Sarca #3) X X
Bungs 38mm 1 1 1
Capped Keel 50mm
Dive door
Floor – carpet / plywood X
Floor “Tuff Deck” 3mm checker plate wash down alloy with sump box Opt Opt
Flotation – under floor
Gunwhale rubber inserts
Painted – chine up & inside
Pin stripes
5083 plate 4mm bottoms with capped keel & welded strakes 4mm 4mm 5mm
Reverse Chines
Rod holders (plastic) 6 6 6
Side Pockets
Spray chines
Steering – hydraulic
Walk Around raise floor
Carpeted step to raised floor
Samurai Hull
Towing eye – double
Transducer bracket – Dual
Trim Tabs with Indicator switch Opt
Opt
Wide side decks – Fully welded
TRANSOM
Ultimate Edge 2
Extra Long Shaft 25″
CENTRE CABIN
Cabin lining Opt Opt Opt
Carpeted covered bunks – Storage underneath
Folding Alloy Canopy with 6 rod holders
Rear instrument cover
Cabin hatch
Windscreen
FUEL TANK
Under floor / Gunwale fill / gauge (litres) 175 200 210
RAILS
Heavy duty 32mm bow rails
Heavy duty 32mm transom rails
SEATS
Deluxe fully upholstered folding seat 2 2 2

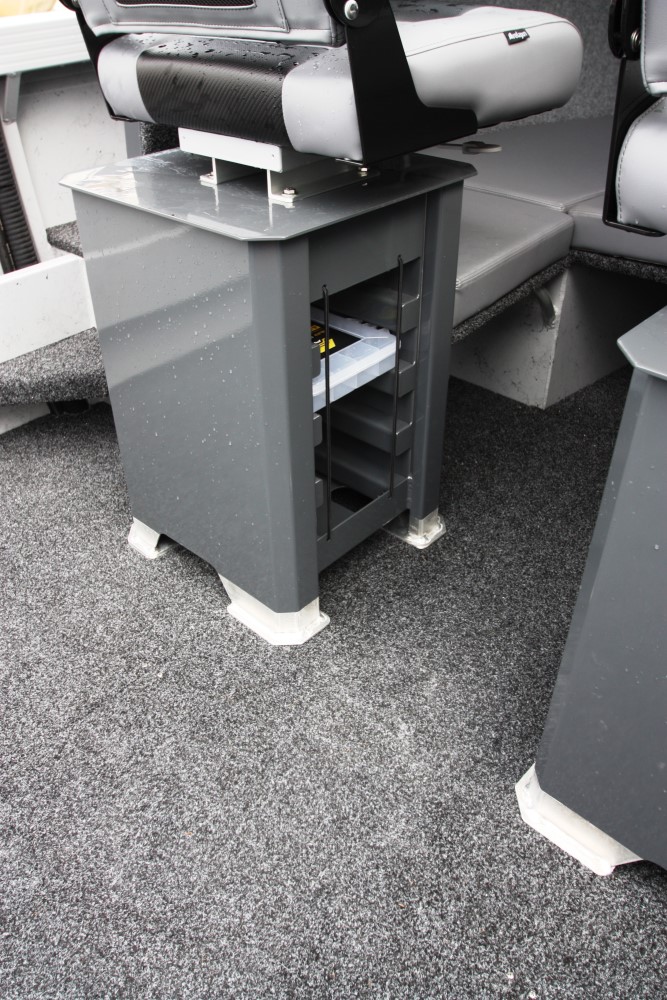

Seat Box’s With Tackle Storage To Suit 4 x Plano 3700 Series Tackle Trays
Seat Slide Driver & Passenger
ELECTRICAL
Accessory pre-rig loom with battery box & isolation switch to suit single battery
Bilge Pump
Cabin Light LED
Bait Tank Pump
GME GX700 VHF radio flush mounted with 1.8m aerial Opt
Opt
6 gang switch panel / navigation, stern & anchor light
Note – Features are subject to change without notice

Opt = Optional. Also check options tab for full list of options.
Std = Standard inclusion

OPTIONS 550 590 630
Bait Board standard (bolt on) Opt Opt X
Bait Board Deluxe (bolt on) Opt Opt Std
Bait Board Removable – requires socket fitted at factory Opt Opt X
Bunk Cushions Opt Opt Opt
Bunk In Fill (Centre) Opt Opt Opt
Bunk Extensions to seat boxes Opt Opt Opt
Cabin Lining Opt Opt Opt
Lounge Rear 3/4 Opt Opt X
Lounge Rear 1/2 X X Opt
Minn Kota Mount plate Opt Opt Opt
Minn Kota 24v fit up. Including, wiring, battery boxes & fuse holder Opt Opt Opt
Paint Upgrade to Color Opt Opt Opt
Printed Vinyl Wrap Opt Opt Opt
Salt Water Deckwash Pump Kit Opt Opt Opt
Sarca #2 anchor with s/s swivel Opt Opt X
Sarca#3 anchor with s/s swivel X X Opt
Stress Free NG Mini With nylon rope kit Opt Opt X
Stress Free Midi with nylon rope kit X X Opt
Sea Jay Galvanised Steel Trailer. Get Extra 12 Month Warranty – FREE Opt Opt Opt
Sea Jay Alloy Trailer. Get Extra 12 Month Warranty – FREE Opt Opt Opt
Spare Wheel Kit Opt Opt Opt
Floor “Tuff Deck” 3mm checker plate wash down alloy with sump box Opt Opt Std
Trim Tabs with Indicator Switch Opt Opt Std
Upgrade accessory pre-rig to dual battery Opt Opt Opt
Upgrade plastic rod holders to alloy Opt Opt Opt
Upgrade from standard bilge pump to auto bilge pump Opt Opt Opt
Upgrade bottom from 4mm plate to 5mm plate (5083 high tensile) Opt Opt Std
Upgrade from BayStar to SeaStar hydraulic steering Opt Opt Opt
Options are subject to change without notification

Opt = Optional
Std = Standard
